| Types | Volume of Fuel (Kg/h) | Methods of Control | Power | Fan Motor Kw | Heater (Kw) | Air Compressor(Kw) |
| HM-200TR | 50-180 | 比例式proportional | 3 | 5.5 | 7 | 1.5 |
| HM-250TR | 60-240 | " | 3 | 7.5 | 8 | 2.2 |
| HM-300TR | 70-300 | " | 3 | 11 | 10 | 2.2 |
| HM-420TR | 100-380 | " | 3 | 15 | 12 | 3.7 |
| HM-500TR | 110-460 | " | 3 | 15 | 15 | 3.7 |
| HM-800TR | 160-600 | " | 3 | 18.5 | 10*2 | 5.5 |
| HM-900TR | 160-740 | " | 3 | 22 | 12*2 | 5.5 |
| HM-1000TR | 180-900 | " | 3 | 30 | 15*2 | 5.5 |
| HM-1500TR | 230-1200 | " | 3 | 45 | 18*3 | 11 |

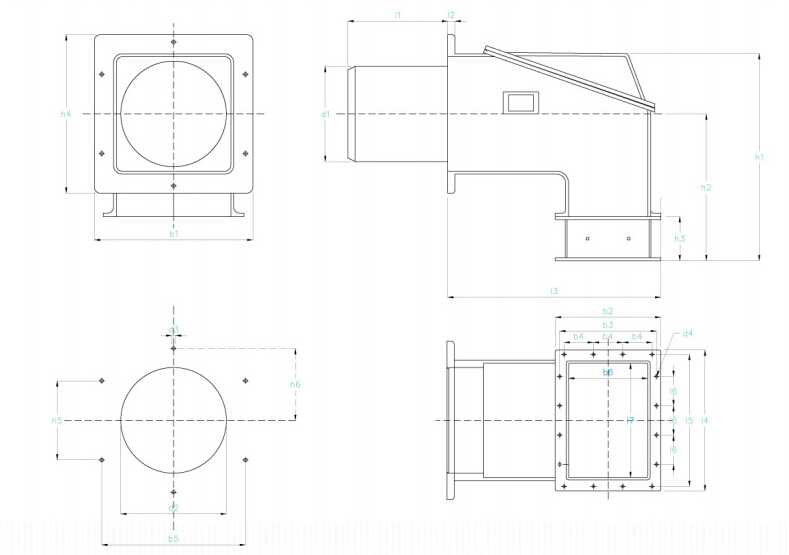

| Burner | dimensions in mm | ||||||
| type | b1 | b2 | b3 | b4 | b5 | b6 | |
| HM-200TR | 400 | 340 | 310 | 80 | 360 | 240 | |
| HM-250TR | 400 | 340 | 310 | 80 | 360 | 240 | |
| HM-300TR | 400 | 340 | 310 | 80 | 360 | 240 | |
| HM-420TR | 540 | 360 | 330 | 100 | 490 | 250 | |
| HM-500TR | 540 | 360 | 330 | 100 | 490 | 250 | |
type | I1 | I2 | I3 | I4 | I5 | I6 | I7 |
| HM-200TR | 225 | 20 | 665 | 400 | 370 | 100 | 290 |
| HM-250TR | 225 | 20 | 665 | 400 | 370 | 100 | 290 |
| HM-300TR | 220 | 20 | 665 | 400 | 370 | 100 | 290 |
| HM-420TR | 340 | 25 | 730 | 480 | 450 | 100 | 370 |
| HM-500TR | 340 | 25 | 730 | 480 | 450 | 100 | 370 |
type | d1 | d2 | d3 | d4 | |||
| HM-200TR | 240 | 250 | M12 | 9 | |||
| HM-250TR | 240 | 250 | M12 | 9 | |||
| HM-300TR | 240 | 250 | M12 | 9 | |||
| HM-420TR | 265 | 280 | M12 | 9 | |||
| HM-500TR | 325 | 340 | M12 | 9 |
| type | h1 | h2 | h3 | h4 | h5 | h6 | |
| HM-200TR | 592 | 430 | 150 | 400 | 200 | 180 | |
| HM-250TR | 592 | 430 | 150 | 400 | 200 | 180 | |
| HM-300TR | 592 | 430 | 150 | 400 | 200 | 180 | |
| HM-420TR | 705 | 500 | 150 | 450 | 270 | 245 | |
| HM-500TR | 705 | 500 | 150 | 540 | 270 | 245 |
| Burner | dimensions in mm | ||||||
| type | b1 | b2 | b3 | b4 | b5 | ||
| HM-800TR | 700 | 560 | 520 | 120 | 460 | ||
| HM-900TR | 700 | 560 | 520 | 120 | 460 | ||
| HM-1000TR | 700 | 560 | 520 | 120 | 460 | ||
| HM-1500TR | 700 | 560 | 520 | 120 | 460 | ||
type | I1 | I2 | I3 | I4 | I5 | I6 | I7 |
| HM-800TR | 407 | 45 | 1020 | 640 | 600 | 120 | 540 |
| HM-900TR | 407 | 45 | 1020 | 640 | 600 | 120 | 540 |
| HM-1000TR | 435 | 45 | 1020 | 640 | 600 | 120 | 540 |
| HM-1500TR | 435 | 45 | 1020 | 640 | 600 | 120 | 540 |
type | d1 | d2 | d3 | d4 | d5 | d6 | |
| HM-800TR | 400 | 435 | 735 | M16 | 11 | ||
| HM-900TR | 400 | 435 | 735 | M16 | 11 | ||
| HM-1000TR | 480 | 520 | 550 | 735 | M16 | 11 | |
| HM-1500TR | 480 | 520 | 550 | 735 | M16 | 11 |
| type | h1 | h2 | h3 | h4 | |||
| HM-800TR | 922 | 640 | 200 | 700 | |||
| HM-900TR | 922 | 640 | 200 | 700 | |||
| HM-1000TR | 922 | 640 | 200 | 700 | |||
| HM-1500TR | 922 | 640 | 200 | 700 |
